 Home / ProductGFZL Series Dry Granulating Set

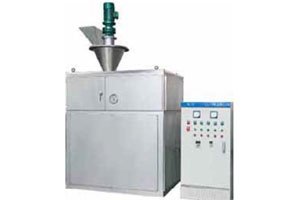

GFZL Series Dry Granulating Set

GFZL series dry-power pelletizer is a newly-designed pelletizing machine developed and manufactured by our company in accordance with the needs of customers and on the basis of absorbing the foreign advanced technology.
More

Detailed description

Features:
● Particle intensity can be adjusted. Regulate the Pressure of rollers to control intensity of product. ● Operating in cycles, working continuously.

● High product output, output of one machine can be more than 2000kg/h. (Heap Intensity 1.5×103kg/m3) .

Principle:
Power materials pass the vibrating material delivery bucket, after quantity fixed by cross spiral material convyor. Evenly enter main rolling flake material bucket. So quantity of materials in material bucket keep constant. After powder materials are precompressed by the longitudinal cone spiral in the main flake bucket. they Will be sent to inlets of two curve slots. Half oblate slots of rhomb slots or rhomb slots evenly separate on surface of two rollers. By way of meshing and transmission of a couple of gears, two rollers reverse rotation with one speed. So materials are bitten into the slots and forced to be compressed in a tank. After materials being compressed and forming. the pressure on them gradually reduce. Materials drop by elasticity and gravity from the slots. Enter the Broken Granulating System. There they are screened and graded according to consumer, require of particles size Finally you get regular particle product conforming to quality standard. Rest of screened powder can return to vibrating bucket to be used again.
Application:
石油化工Oil&chemical生物工程Biosynthesis金屬粉末Metallicpower 精細化工Finechemical醫藥Medicine食品Foodstuff 農藥Agrochemical化肥Fertilizer礦產,煤炭Mine,Coalmine
Technical parameters:

型號/項目

GFZL-1

GFZL-2

GFZL-3

GFZL-4

GFZL-5

軋輥直徑mm

φ240

φ240

φ300

φ360

φ480

軋輥有效使用寬度mm

80

160

250

360

480

軋輥轉速rpm

8-20

8-20

8-20

8-20

8-20

最大成形壓力t

50

60

80

100

130

軋輥?zhàn)畲蠛穸?span lang='EN-US'>mm

4

5

6

8

8

軋片產量kg/h

250-500

500-900

700-2000

1000-1400

2000-7400

成品粒度mm

0.2-5

0.2-5

0.2-8

0.2-8

0.2-8

成品產量kg/h

80-150

150-300

300-600

600-1000

1000-2000

主機功率kw

7.5

11

15

22

30

總功率kw

13

21

30

46

60

外形尺寸 長××mm

1500×2000×3800

1700×2000×4000

2000×2500×4200

2500×2500×5200

2800×2600×6000

重量t

7

8

10

14

20

注:1、軋片產量以料片密度1500kg/m3,軋輥轉速20rpm計算。2、成品產量以成立量50%計算。 3、成品粒度通過改變破碎整粒機的篩板孔徑可在較大范圍調整。 4、主機所用實際功率為所選電機功率的70% 。5、軋輥轉速通過改變電機與減速機之間的皮帶輪傳動來進行調整。
