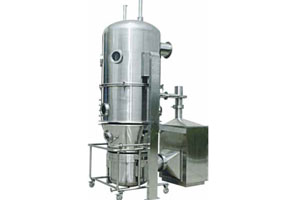

PGL-B Spray Drying Granulator
PGL-B Spray Drying Granulator for medicine preparation of granules, capsules, tablets, granules or coated particles.
Detailed description
Features：
● Integrate spraying, drying/fluid granulating in a body and realize granulat-ing in one step.
● Using the process of spraying, it is particularly suitable for micro auxiliary raw materials and thermal sensitive raw materials. Its power is 1-2 times that FL boiling granulating machine.
● The final moisture of products can reach 0.1% It is equipped with powder returning device.The rate of granule forming is more than 95%. 0.2-2 mm of granule.
● The improved inner roller multi-flow atomizer in design can treat the liquid extract with 1.3g/cm3 of gravity.
Application：
● Pharmaceutical industry:tablet, capsule, granule, granule of Chinese medicine with on or low sugar.
● Foodstuff; cocoa, coffee, milk powder, juice of granule, flavoring and so on.
● Other industries: pesticides , feed , chemical fertilizer, pigment, dyestuff and so on.
Technical parameters：
|
項目 |
規格 |
3 |
5 |
10 |
20 |
30 |
40 |
80 |
120 |
150 |
|
原料容積 |
L |
26 |
50 |
100 |
220 |
300 |
420 |
670 |
1000 |
1500 |
|
供液量 |
kg/h |
2-4 |
4-6 |
6-15 |
15-25 |
20-40 |
30-60 |
60-100 |
20-160 |
100-200 |
|
液體比重 |
kg/L |
|
|
|
|
≤1.3 |
|
|
|
|
|
蒸汽量（0.6Mpa) |
kg/h |
25 |
50 |
120 |
160 |
240 |
280 |
300 |
380 |
465 |
|
輔風機 |
m3/min |
0.4 |
0.6 |
0.9 |
0.9 |
1.1 |
1.1 |
1.3 |
1.6 |
1.8 |
|
主風機 |
Kw |
0.55 |
0.75 |
0.75 |
1.1 |
1.5 |
1.5 |
1.5 |
|
2.2 |
|
主機尺寸 |
Kw |
3 |
4 |
7.5 |
11 |
18.5 |
18.5 |
22 |
30 |
37 |
|
H1(mm) |
1900 |
2360 |
2680 |
3150 |
3630 |
3630 |
4120 |
5050 |
5400 |
|
|
H2(mm) |
190 |
260 |
340 |
490 |
540 |
590 |
690 |
|
990 |
|
|
H3(mm) |
1680 |
2140 |
2460 |
2930 |
3410 |
3410 |
3900 |
4830 |
5180 |
|
|
φ1(mm) |
400 |
550 |
700 |
1000 |
1100 |
1200 |
1400 |
1800 |
2000 |
|
|
φ2(mm) |
150 |
180 |
180 |
250 |
280 |
280 |
315 |
|
355 |
|
|
B(mm) |
860 |
1010 |
1160 |
1460 |
1560 |
1660 |
1860 |
2260 |
2460 |
|
|
L(mm) |
1050 |
1050 |
1250 |
1400 |
1450 |
1500 |
1600 |
1800 |
2000 |
|
|
所有尺寸僅供參考，視物料情況，本公司有變更權利，并不另行通知 |
||||||||||
