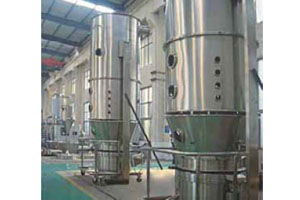

FL-P Series Fluidized Granulator
The powder grannle in the container (fluidization)appear in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive solvent is fogged and sprayed into the container
Detailed description
Features：
● Through powder Granulation, the fluidity is improved and the dust is reduced;
● Through powder Granulation, its solving property is improved;
● The mixing, Granulation and drying can be completed in one step inside the machine;
● The operation of equipment is safe because the anti static filtering cloth is adapted;
● The operating personnel can not be damaged if explosion take place because there is releasing hole;
● The equipment has no dead corner. Therefore the loading and unloading are quick and light and clean. It can meet the requirements of GMP.
Principle：
The powder grannle in the container (fluidization)appear in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive solvent is fogged and sprayed into the containerIt makes the some particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulation is evaporated and the adhesive is solidification. The process is carried out continuously. Finally it forms ideal, uniform and Porous granules.
Technical parameters：
Technical parameters：|
項目 |
單位 |
機型 |
|||||||||
|
3 |
5 |
15 |
30 |
60 |
120 |
200 |
300 |
500 |
|||
|
原料容器 |
容量 |
L |
12 |
22 |
45 |
100 |
220 |
420 |
670 |
1000 |
1500 |
|
直徑 |
mm |
300 |
400 |
550 |
700 |
1000 |
1200 |
1400 |
1600 |
1800 |
|
|
生產能力 |
最小 |
Kg |
1.5 |
4 |
10 |
15 |
30 |
80 |
100 |
150 |
250 |
|
最大 |
Kg |
4.5 |
6 |
20 |
45 |
90 |
160 |
300 |
450 |
750 |
|
|
風機 |
風量 |
m3/h |
1000 |
1200 |
1400 |
1800 |
3000 |
4500 |
6000 |
7000 |
8000 |
|
風壓 |
mmH2O |
375 |
375 |
480 |
480 |
950 |
950 |
950 |
950 |
950 |
|
|
功率 |
Kw |
3 |
4 |
5.5 |
7.5 |
11 |
18.5 |
22 |
30 |
45 |
|
|
蒸汽消耗量 |
Kg/h |
15 |
23 |
42 |
70 |
141 |
211 |
282 |
366 |
451 |
|
|
壓縮空氣耗量 |
m3/min |
0.9 |
0.9 |
0.9 |
0.9 |
1.0 |
1.0 |
1.1 |
1.5 |
1.5 |
|
|
主機 重量 |
Kg |
500 |
700 |
900 |
1000 |
1100 |
1300 |
1500 |
1800 |
2000 |
|
|
蒸汽 壓力 |
Mpa |
0.3～0.6 |
|||||||||
|
溫度 |
℃ |
室溫-120℃范圍內可調節(jié) |
|||||||||
|
作業(yè) 時間 |
min |
隨物料特性而定45~90 |
|||||||||
|
物料收得率 |
﹪ |
≥99 |
|||||||||
|
噪聲 |
dB(A) |
風機與主機隔離安裝，噪聲≤75 dB(A) |
|||||||||
|
主機外形尺寸L×W×H |
m |
1.0×0.6 ×2.1 |
1.2×0.7 ×2.1 |
1.25×0.9 ×2.5 |
1.6×1.1 ×2.5 |
1.85×1.4 ×3 |
2.2×1.65 ×3.3 |
2.34×1.7 ×3.8 |
2.8×2.0 ×4.0 |
3×2.25 ×4.4 |
|
