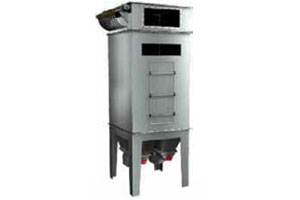

MC series pluse filter with hop-pocket
The air stream containing dust passes through low box from air inlet.
Detailed description
Description：
The air stream containing dust passes through low box from air inlet. Parts of it deposit When light particle dust is floated. It is retarded in the bag. The purified air penetrates the filtrating bag and passes into the up box through venture and exhausts from outlet. The accumulated powder dust on the outer wall of filtering bag.
Application：
The equipment is widely used for ventilation and degusting and recovering powder dust of metallurgy industry. casting industry, mine, chemical industry, and pharmaceutical industry, construction material industry, fed industry and grain processing industry and so on.
Technical parameters：
| 參數/型號 | MC24 | MC36 | MC48 | MC60 | MC72 | MC84 | MC96 | MC120 | |
| 過濾面積(m2 ) | 18 | 27 | 36 | 45 | 54 | 63 | 72 | 90 | |
| 濾袋數量(只) | 24 | 36 | 48 | 60 | 72 | 84 | 96 | 120 | |
| 過濾風速(L/m2.s) | 20-40 | 20-40 | 20-40 | 20-40 | 20-40 | 20-40 | 20-40 | 20-40 | |
| 過濾風量(m3/h) | 1300-2600 | 1950-3900 | 2600-5200 | 3240-6480 | 3900-7800 | 4550-9100 | 5200-10500 | 6500-13000 | |
| 最大外形尺寸 (mm) | 長L | 1000 | 1400 | 1800 | 2200 | 2600 | 3000 | 3560 | 4360 |
|
寬×高 W×H |
1450×3700 | 1450×3660 | 1450×4100 | ||||||
| 清灰裝置 | 脈沖閥數量 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
| 耗用壓縮空氣量(m3) | 0.07-0.30 | 0.11-0.40 | 0.15-0.50 | 0.18-0.60 | 0.22-0.60 | 0.25-0.90 | 0.29-0.90 | 0.37-0.90 | |
| 壓縮空氣壓力(kg/cm2) | 5-7 | ||||||||
