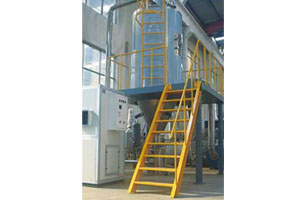

YPG Series Pressure Spray(Congeal) Dryer
The liquid or paste raw material is spraied into minuty liquid drop by pressed spraier draw assistance from pressure of diaphragm pump, and quickly drying through short heat exchange.(10sec.) at last, the powder or small granule is obtained.
Detailed description
Features：
● The dry speed is fast and suitable for drying thermal sensitivity material particularly.
● The finished product is ball granule with uniform size. Its fluidity and solubility are good. The purity of product is high and its quaity is good．
● It applied scope is wide. According to the characteristics of raw material，it can use hot air to dry and can also use cool air to granulate. It has strong adaptability to raw materials.
● Its operation is simple and stable and its control is simple and convenient and is easy to realize automatic operation.
●The product particle diameters, looseness and water contents can be adjusted through changing the operation condition within a certain range.
Description：
The liquid or paste raw material is spraied into minuty liquid drop by pressed spraier draw assistance from pressure of diaphragm pump, and quickly drying through short heat exchange.(10sec.) at last, the powder or small granule is obtained.
Application：
It is suitable for liquid of foodstuff， pharmaceutical， chemical industry， dyestuff，ceramics，agrochemicals，plastic and so on.
Technical parameters：
| 型號 | 50 | 100 | 150 | 200 | 300 | 500 | 1000 |
| 水份蒸發量Kg/h | 50 | 100 | 150 | 200 | 300 | 500 | 1000 |
| 外形尺寸（Φ×H）mm | 1600×8900 | 2000×11500 | 2400×13500 | 2800×14800 | 3200×15400 | 3800×18800 | 4600×22500 |
| 高壓泵壓力Mpa | 2-10 | ||||||
| 功率KW | 8.5 | 14 | 22 | 24 | 30 | 82 | 30 |
| 進風溫度℃ | 300-350 | ||||||
| 產品含水量% | ﹤5(可達0.5) | ||||||
| 物料回收% | ﹥97 | ||||||
| 電加熱KW | 75 | 120 | 150 | 溫度低于200度時，具體按實際計算 | |||
| 電加蒸汽Mpa+KW | 0.5+54 | 0.6+90 | 0.6+108 | ||||
| 熱風爐Kcal/h | 100000 | 150000 | 200000 | 300000 | 400000 | 500000 | 1200000 |
注：部分參數設計時視不同物料有所調整，以設計為準。
