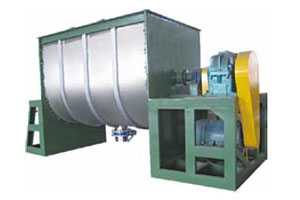

WLDH Series Horizontal Ribbon Mixer
This machine is composed of container, screw stirring paddles and transitional parts; the screw paddle are generally made into 1 layer or 3 layers.
Detailed description
Features：
Big coefficient of loading, small occupied area.
Application：
The ribbon mixer is generally used in the mixing of viscous or adhesive powder material, or the mixing of powder which needs to add liquid, and paste material. Meanwhile, because it is difficult to clean viscous material, the machine is suitable for the mixing case, where the output is large and there is no need of displacing material variety frequently.
Technical parameters：
|
型號規格(m3) |
WLDH-0.1 | WLDH-0.3 | WLDH-0.5 | WLDH- 1.0 | WLDH-1.5 | WLDH-2.0 | WLDH-3.0 | WLDH-4.0 | WLDH-6.0 | WLDH-8.0 | WLDH-10 |
| 一次混合 | 30-50 | 100-150 | 200-300 | 400-600 | 600-900 | 800-1200 | 1200-1800 | 1600-2400 | 2400-3600 | 3200-4800 | 4000-6000 |
| 裝機功率 | 1.5-4 | 3-5.5 | 4-11 | 7.5-15 | 11-18.5 | 15-22 | 18.5-30 | 22-37 | 37-55 | 37-55 | 45-75 |
| 設備重量 | 420 | 850 | 1060 | 1790 | 1900 | 2750 | 3500 | 4280 | 5300 | 6800 | 7800 |
上述產品按客戶要求由A3鋼或不銹鋼制造。
