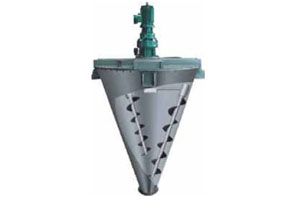

WH Series Double-screw Conical Mixer
The material is made to conduct a compound motion in the cone because of the rotation and revolution of the screws.
Detailed description
Description：
The material is made to conduct a compound motion in the cone because of the rotation and revolution of the screws. The effected motions include:
1. The revolution of the screw along the wall making the material conduct a circumferential motion;
2. The rotation of the screw making the material rise along the screw from the cone bottom;
3. The compound motion of the ratation and revolution of the screws making partial, material be absorbed into the screw cylindroid meanwhile, under the action of centrifugal force, the partial material in the screw cylindroid discharges radially.
4. The rised material drops under its sole weight. The four kinds of motions effect convection, shearing, diffusion in the cone , thus quick and even mixing can be achieved.
Application：
It is suitable for chemical industry, pharmaceutical industry pesticide, dyestuff , petroleum industry, metallurgical industry, construction material and etc . Such as in the mixing, reaction, drying, cooling of powder and powder(solid-solid), powder and liquid (solid-liquid), liquid and liquid ( liquid-liquid).
Technical parameters：
|
型 號 |
全容積(m3) |
裝載系數(shù) |
裝機功率 (kw) |
操作條件 |
外形尺寸 (mm) |
重量 (kg) |
|
DSH-0.1 |
0.1 |
≤0.6 |
1.5 |
常溫常壓粉塵密封 |
1569φ702 |
250 |
|
DSH-0.3 |
0.3 |
≤0.6 |
2.2 |
常溫常壓粉塵密封 |
1929φ920 |
550 |
|
DSH-0.5 |
0.5 |
≤0.6 |
3 |
常溫常壓粉塵密封 |
2322φ1124 |
660 |
|
DSH-1.0 |
1.0 |
≤0.6 |
4 |
常溫常壓粉塵密封 |
2869φ1480 |
1200 |
|
DSH-1.5 |
1.5 |
≤0.6 |
5.5 |
常溫常壓粉塵密封 |
3140φ1633 |
1350 |
|
DSH-2.0 |
2.0 |
≤0.6 |
5.5 |
常溫常壓粉塵密封 |
3489φ1816 |
1500 |
|
DSH-3.0 |
3.0 |
≤0.6 |
7.5 |
常溫常壓粉塵密封 |
3747φ2210 |
2300 |
|
DSH-4.0 |
4.0 |
≤0.6 |
11 |
常溫常壓粉塵密封 |
4362φ2280 |
2520 |
|
DSH-5.0 |
5.0 |
≤0.6 |
15 |
常溫常壓粉塵密封 |
4576φ2402 |
3000 |
|
DSH-6.0 |
6.0 |
≤0.6 |
15 |
常溫常壓粉塵密封 |
4900φ2582 |
3150 |
|
DSH-8.0 |
8.0 |
≤0.6 |
18.5 |
常溫常壓粉塵密封 |
5405φ2805 |
4500 |
|
DSH-10 |
10 |
≤0.6 |
20.7 |
常溫常壓粉塵密封 |
5795φ3018 |
5500 |
|
DSH-15 |
15 |
≤0.6 |
24.2 |
常溫常壓粉塵密封 |
6475φ3450 |
6600 |
|
DSH-20 |
20 |
≤0.6 |
41 |
常溫常壓粉塵密封 |
7535φ3805 |
7000 |
|
DSH-25 |
25 |
≤0.6 |
41 |
常溫常壓粉塵密封 |
7995φ4078 |
8500 |
|
DSH-30 |
30 |
≤0.6 |
52.5 |
常溫常壓粉塵密封 |
8385φ4330 |
9200 |
